Excel Charts and Dashboards: How to Visualize Data Effectively

Welcome to Part 7 of our 10-part Excel Tips & Tricks series. We have come a long way. You’ve learned to navigate like a pro, clean your data with logic, organize it into tables, and pull information from across your workbook using advanced lookups like XLOOKUP.

But here is the reality of the professional world: Your boss, your clients, and your stakeholders rarely want to see a grid of 10,000 rows, no matter how clean or well-organized they are. They want insights. They want to see the "Big Picture" instantly, accurately, and in a visually compelling way.

This is where data visualization comes in. In this guide, we are moving beyond the numbers and into the art of storytelling. We will cover how to choose the right chart for your data, build a dynamic dashboard that updates automatically, and format your visuals to look professional in any boardroom presentation.

How to Choose the Right Chart Type in Excel

One of the most common mistakes in Excel is picking a chart because it "looks cool" rather than because it fits the data. Choosing the wrong chart can actually mislead your audience. Always start with the question: What do I want to show?

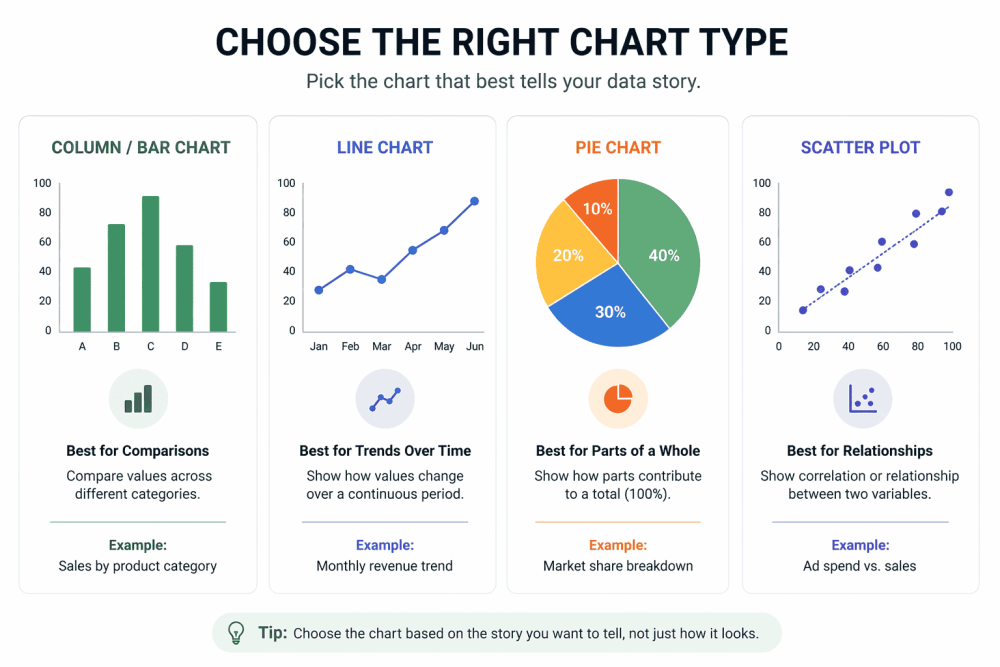

Here is a breakdown of the four "Big Players" in data visualization:

A. When to Use Column or Bar Charts (Comparisons)

Use these when you want to compare different categories.

• Example: Sales performance by individual salesperson or revenue by product category.
• Pro Tip: If you have long category names (like "North American Industrial Division"), use a Horizontal Bar Chart instead of a vertical one to make the labels easier to read.

B. When to Use Line Charts (Trends Over Time)

Line charts are designed for one thing: showing change over a continuous period.

• Example: Monthly revenue growth over the last three years or daily website traffic.
• Pro Tip: Avoid using line charts for categorical data. You shouldn't use a line chart to compare "Apples" and "Oranges, it implies there is a progression from one to the other.

C. When to Use Pie Charts (Parts of a Whole)

Pie charts are often overused. They should only be used when you want to show how parts contribute to a total (100%).

• Example: Market share or budget breakdown.
• Pro Tip: Never use a pie chart with more than five slices. If your data is too granular, it becomes a "rainbow mess" that is impossible to interpret.

D. When to Use Scatter Plots (Relationships)

Scatter plots help identify correlations between two variables.

• Example: Does the amount of money spent on advertising correlate with an increase in sales?

How to Create a Dashboard in Excel (Step-by-Step)

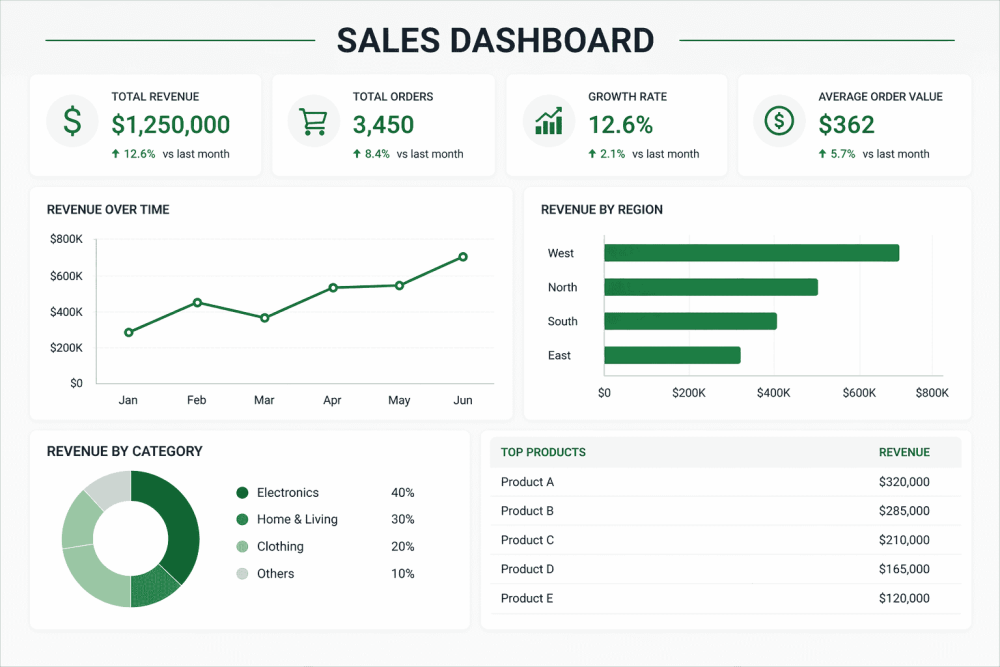

A "Dashboard" sounds intimidating, but in Excel, it is simply a single sheet that gathers multiple charts and data points to provide an overview of a business process. The key to a professional dashboard is that it must be Dynamic.

Step 1: Prepare Your Data

Convert your data into an Excel Table. This allows charts to update automatically when new data is added.

Step 2: Insert Charts

Create charts based on your goal:

• Trend → Line chart
• Comparison → Column chart

For large datasets and smoother performance, using a modern version of Excel can make a noticeable difference. If you're working with high-volume data or dashboards, tools like Microsoft Office LTSC 2024 Professional Plus, which includes the latest Excel version, are designed to handle more demanding workloads efficiently.

Step 3: Create a Dashboard Sheet

Add a new sheet and name it “Dashboard.” Turn off gridlines for a cleaner layout.

Step 4: Add Key Metrics (KPIs)

Place important numbers at the top:

• Total revenue
• Growth rate
• Average order value

Step 5: Arrange Your Layout

Put your most important chart in the top-left area. This is where users look first.

Step 6: Add Interactivity with Slicers

Insert slicers to filter your data dynamically (explained below).

How to Use Slicers in Excel Dashboards

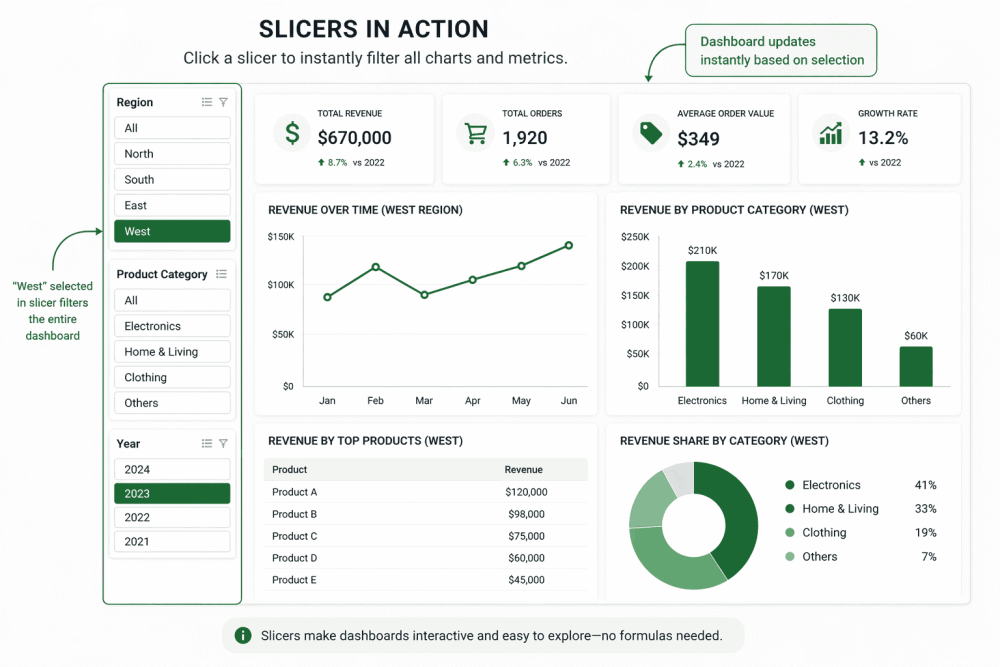

Slicers are arguably the most impressive visual feature in Excel. They act as "buttons" that allow users to filter your charts without ever touching a dropdown menu or a formula.

Why Slicers are Essential

If you present a dashboard showing "Total Company Sales," the first question a manager will ask is: "Can I see just the results for the West Region?" Instead of rebuilding the chart, you simply click the "West" button on your Slicer, and every chart on the dashboard instantly updates.

How to Add a Slicer

1. Click on any chart connected to a Table or PivotTable.
2. Go to the Insert tab and click Slicer.
3. Choose the field you want to filter by (e.g., Region, Product Category, or Salesperson).

How to Connect Slicers to Multiple Charts

Right-click the slicer → Report Connections → Select all charts

Now your entire dashboard updates with one click.

How to Make Excel Charts Look Professional

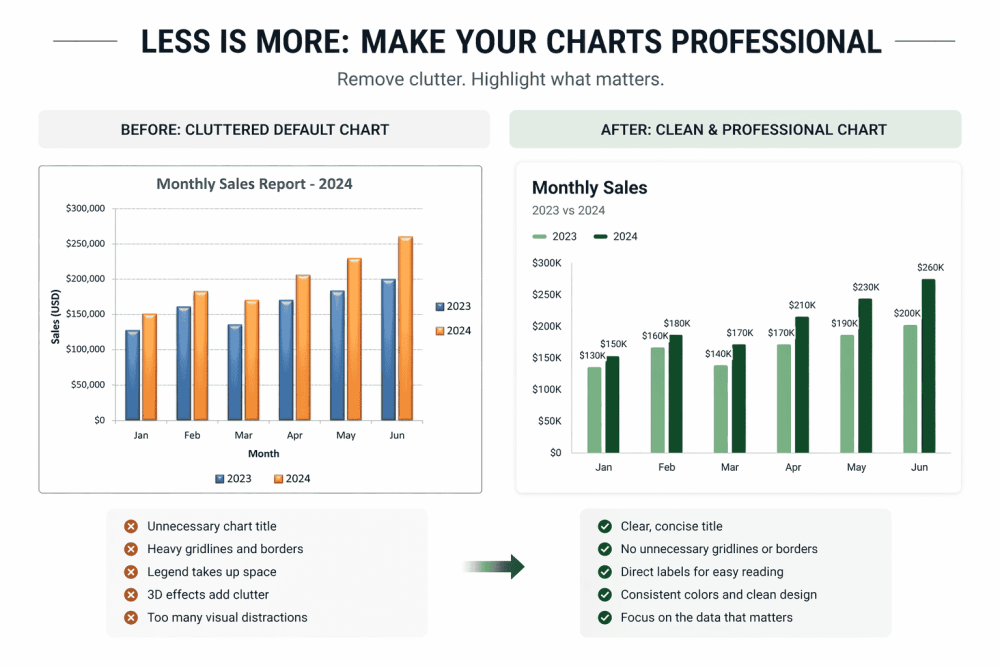

A "standard" Excel chart is often cluttered with "chart junk"; unnecessary lines, legends, and labels that distract the eye. Professional designers follow the principle of High Data-to-Ink Ratio.

Cleanup Checklist:

• Remove Gridlines: If the exact number isn't vital, remove the faint horizontal lines. It makes the chart look modern and clean.
• Delete the Legend (if possible): If you have only one data series (e.g., Monthly Sales), you don't need a legend labeled "Sales." The chart's title already tells us that.
• Use Direct Labeling: Instead of making the audience look at the Y-Axis to guess a number, right-click your data bars and "Add Data Labels" to show the exact value on top of the bars.
• Consistency is King: Use the same color palette across all charts in your dashboard. Use one primary "Brand Color" for your data and a light gray for background elements.

Common Excel Chart Mistakes to Avoid

• Choosing charts based on appearance instead of purpose
• Using pie charts with too many categories
• Adding too many colors or effects
• Keeping unnecessary gridlines and labels
• Not aligning charts consistently

Example Use Case: Monthly Sales Dashboard

Imagine you are preparing for a quarterly review. You have a table of monthly sales across four regions.

The Setup:

1. Create a Line Chart to show the trend of total sales from January to December. Format the line to be thick and bold.
2. Create a Clustered Column Chart to compare the performance of the four regions.
3. Insert a Slicer for "Region."

The Result:

When you present, you can show the overall company trend. When a regional manager asks about their specific performance, you click their region on the Slicer. The line chart shifts to show their specific monthly trend, and the column chart highlights their specific numbers. You’ve transformed a static report into an interactive, real-time analysis tool.

Why Data Visualization Matters

Data visualization bridges the gap between raw data and decision-making.

A well-designed dashboard:

• Saves time
• Reduces confusion
• Helps stakeholders act faster

In most business settings, clarity matters more than complexity.

Excel Tips & Tricks Series (10-Part Guide)

You are now 70% of the way through your journey to Excel mastery! You have moved from simple cells to professional interactive dashboards.

Catch up on the series:

• Part 1: Excel Tips for Beginners — Spreadsheets Don’t Have to Be Scary
• Part 2: 15 Excel Keyboard Shortcuts Every User Should Know
• Part 3: Excel Formulas Made Simple
• Part 4: Logical and Text Functions in Excel
• Part 5: Sorting, Filtering, and Tables in Excel
• Part 6: Excel Lookup Functions Explained
• Part 7: Creating Charts and Dashboards in Excel (this article)
• Part 8: How to Use PivotTables in Excel – Coming Soon
• Part 9: Advanced Excel Formulas for Power Users
• Part 10: Excel Automation, Auditing, and Workbook Best Practices

Final Thoughts

Data visualization is the bridge between "Crunching Numbers" and "Making Decisions." A well-designed chart doesn't just show data; it provides an answer. By using the right chart types, keeping your design clean, and adding Slicer interactivity, you provide your audience with the clarity they need to act.

The best way to improve your visualization skills is to study professional infographics and try to recreate them in Excel. You’ll be surprised at how much you can achieve with just the standard tools.

In Part 8, we will move into the most powerful analytical tool in the Excel arsenal: PivotTables. We will show you how to summarize thousands of rows of data with just a few clicks—no formulas required.
